SHRINK WRAP L-SEALER & SHRINK TUNNEL

Industrial quality shrink wrapper - easy to use - shrink wrap up to 22 packages per minute.

From $4,395.00 Complete, including the 8" high chamber shrink tunnel, heavy-duty stand, full-width shelf with locking casters. Also available with optional 12" chamber height shrink tunnel or 20" chamber height tunnel. With more features than any system in this price range!

PacWrap® Model 1580 Shrink Tunnel

PacWrap® 1420 LS-C

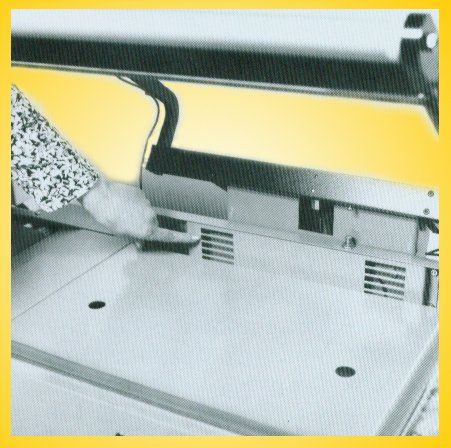

14" x 20" Six position adjustable sealing platform allows for perfect centering of your seal no matter how thick or thin the package profile is.


• 100% Solid State Electronics with USA made high amp relays

   for virtually maintenance free operation. You'll find no old-

   fashioned mechanical contactors to keep clean or flimsy

   and expensive printed circuit boards in the PacWrap® 1420

   LS-C. Just the highest level of solid state dependability

   available.


• Adjustable stainless steel cold punch lets trapped air

   escape when you want or optional pin shrink film perforator.


Six Position Adjustable Sealing Platform For Low or High Profile Packages.

CALL US
PacWrap® Model 1580 Shrink Tunnel

Six Position Adjustable Sealing Platform For Low or High Profile Packages

Tunnel features include:


• Fully insulated for energy efficiency

• Industrial squirrel cage blower for superior airflow (Finger

   guard protected for safety)

• Variable speed heated conveyor with its own separate

   thermostat

• Calrod style tunnel chamber elements for energy efficiency

   and long life

• The perfect amount of heat and airflow speed for any

   standard shrink film; Polyolefin, Polypropylene, or PVC.

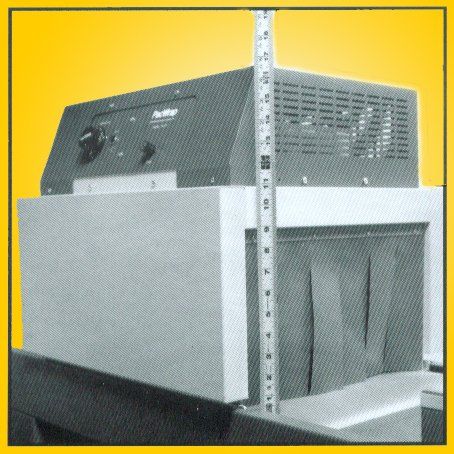

Tunnel Chamber Opening 15" wide, 8" high


(12" high chamber opening available, $400.00 upgrade)

CALL US
PacWrap® Model 1580 Shrink Tunnel

Electronic seal wire temperature compensation

Makes perfect seals regardless of the operator's skill level. Everybody is a success with the 1420 LS-C.


Includes the heavy duty stand with locking casters and full width heavy- duty storage shelf.


Optional: Magnetic Arm Hold Down, Film Perforator, Stainless Steel Sealing Tray, Gravity Feed Take AwayConveyor, Roller Sealing Platen for heavy items (up to 55lbs), DIP Loop Temperature Controller (+ /- 2 degree tunnel temps) instead of standard thermostat.

CALL US

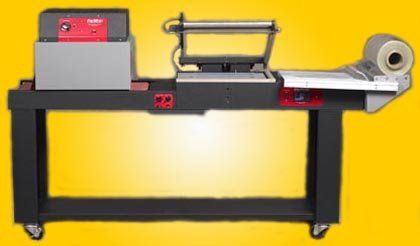

The PacWrap®1420 LS is a heavy duty, production shrink wrapping machine
loaded with important quality features. It comes standard with our Model 1580 high performance shrink tunnel (8" high tunnel shrink chamber opening) with variable speed conveyor and automatic cool-down cycle; solid state sealing electronics, heavy duty stand with locking casters, and much more! Built for dependable industrial use, the PacWrap
®1420 LS is as good for your bottom line as it is for your production line.

The PacWrap
®1420 LS features one of the largest tunnel chambers available in this price range. An extra large tunnel opening measuring 8 inches high by 15 inches wide gives you the most package size versatility of any machine in this price range.

The variable speed heated conveyor in the PacWrap
®1420 LS gives superior results with virtually any shrink film. With separate controls for conveyor heat and speed as well as tunnel temperature, getting consistent high quality packages is a breeze!

The Automatic Cool-Down Cycle on the tunnel will save you both time and money for years to come. Once your heat and speed are set, just flip the main power switch and the tunnel will heat itself to your precise settings. Then, when you are finished packaging, the PacWrap
®1420 LSgoes into it's "Auto-Cool" mode, automatically and safely shutting itself off once it's cool. The PacWrap®1420 LS is the only system in this price range with Automatic Cooling as a standard feature.


PacWrap
®1420 LS features 100% Solid State Sealing Electronics. We use American made, ultra-high amp solid state relays; not flimsy printed circuit boards that are prone to burn out or old-fashioned mechanical contactors with springs that break and contact points to keep clean. Our heavy duty solid state relays give the PacWrap®1420 LS-C the highest level of electronic dependability available ... period.

Electronic sealing wire temperature compensation is another standard feature giving you consistent, high quality sealing, regardless of the operator's skill level. Everyone will produce quality seals every time with the PacWrap
®1420 LS.


Plus, the entire unit, tunnel and L-sealer, operates on one 120 volt outlet. (220 volt system available)

The heavy duty stand for the PacWrap
®1420 LS features locking casters and a convenient shelf for storage of all your supplies. Plus many other important features such as a six position adjustable sealing platform, an audio buzzer to let you know when a seal is completed, stainless steel hole punch and a fully adjustable trim indicator. It all adds up to the most complete, most trouble free system available.

Optional features for the PacWrap
®1420 LS include:


• Shrink film micro perforator wheel. ($375.00)
• Two magnetic sealing arm hold down with variable timer($495.95)
• Roller platen for heavy items (up to 55 lbs each) ($995.00) allows the

  operator to easily roll heavy items into the shrink tunnel such as

  beverage cases
• 24 inch long by 15" wide tunnel exit side gravity roller conveyor

  ($495.00)

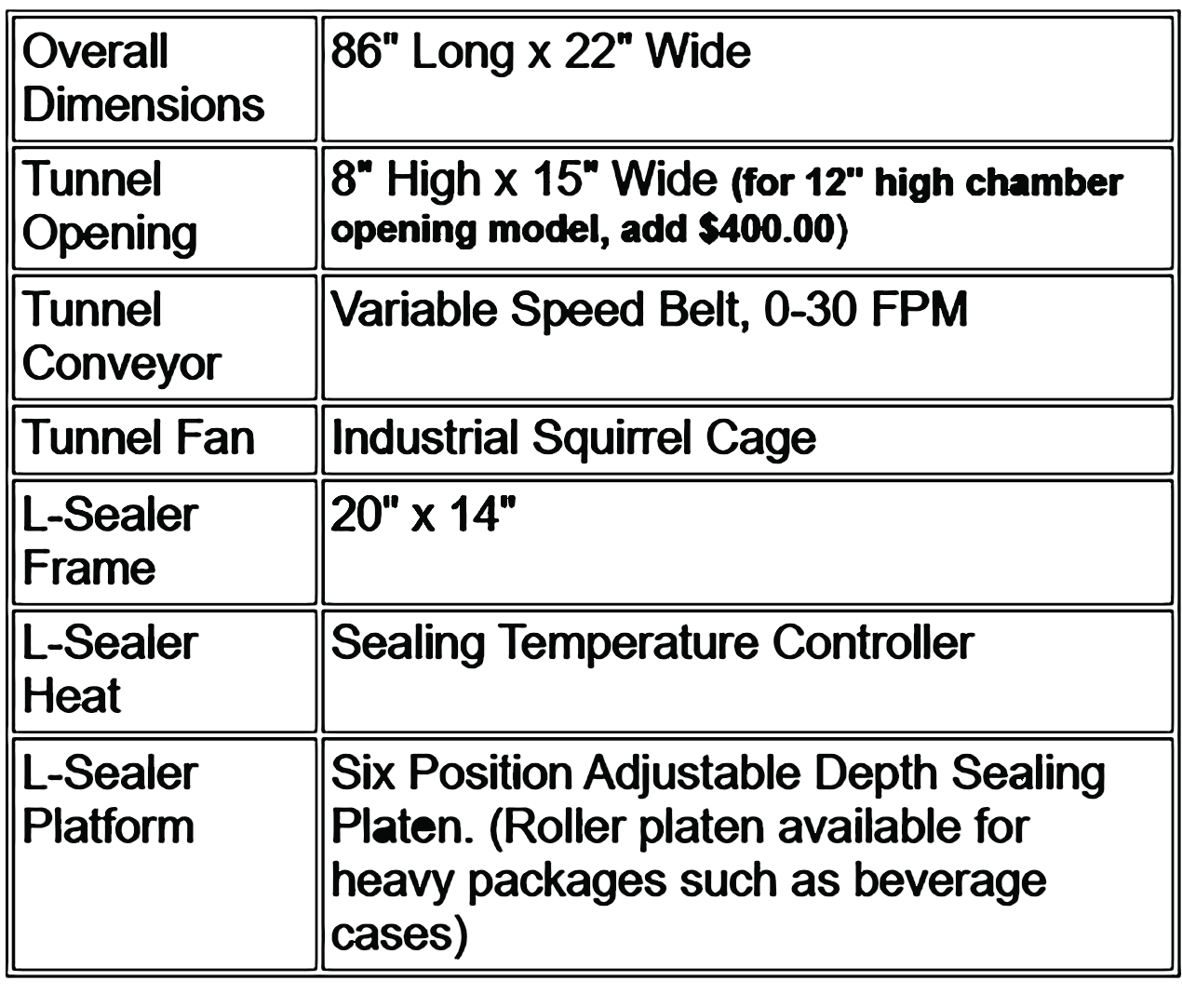

chart

UP TO 22 PACKAGES PER MINUTE PRODUCTION!

14" x 20" Seal Area. Your Choice of 8" or optional 12" or 20" High Shrink Tunnel chamber opening


• Variable Speed, Heated Conveyer
• Automatic Cool-Down Cycle after use
• Reliable Solid State Electronics
• Easy To Read Temperature Controls
• One-Year Limited Warranty
• Made In The U.S.A.


Power
110/120 volt
(220/240 volt model available).


Finish

Powder Coat (Stainless Steel Available)


Shipping Weight

Approximately 350 Ibs.


Casters

3 1/2" Diameter, Locking


Warranty

One-Year Limited Warranty
